Cobham 60NX
GX60NX
New 65cm Inmarsat GX Fleet Xpress Terminal

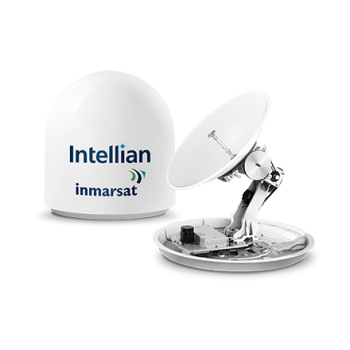

Intellian GX60NX is a 2.5GHz Ka- Wideband ready Global Express terminal with a 65cm diameter reflector. The GX60NX is designed with a compact lightweight antenna enabling easy and convenient installation. The GX60NX is easily upgradeable to a 10W High Power BUC system enabling higher throughput.
The All-In-One GX BDT integrates the GX Modem and GX Mediator, making it simple and easy to install in an FX rack. The GX60NX’s new operation platform ensures quick configuration and activation with its smart operational software AptusNX.
Compact and Lightweight
Even though the weight is reduced dramatically, the terminal performance is not compromised.
High Power BUC Upgradable
No need to replace the BDT and no additional components, a 10W high power BUC can be easily installed.
Future Proof Design
Ready for operation on 2.5GHz Ka-wideband with a frequency tuned radome & reflector.
New All in One Integrated Below Deck Terminal
The all-new GX BDT integrates ACU, GX modem, power supply, 4-port switch and GX Mediator.
Quick and Easy Deployment
- No internal shipping brackets
- Pre-slung lifting strap included as standard
- Easy mounting on the vessel
- Single coax cable design with external cable connection
- Quick and easy commissioning using AptusNX Install Wizard
Compact High Performance Solution
- Rackmount 1U Single BDT including ACU, Modem, Mediator
- 10W high power BUC option in same form factor
- Lightweight and high RF performance
Radome Dimension
86x92.5 cm (33.85x36.4 inch)
Reflector Diameter
65cm (25.6inch)
Antenna Weight
39 kg/ 86 lbs
TX Frequency
29.0~30.0GHz Ka-band
RX Frequency
19.2~20.2GHz Ka-band
TX Gain
44.2 dBi @ 29.5 GHz (excl. radome)
RX Gain
40.5 dBi @ 19.7GHz (excl. radome)
G/T
16.2 dB/K (min.)
| Brand | Cobham |
|---|---|
| Coverage Area | North America, South America, Europe, Asia, Africa, Australia & New Zealand |
| Plan Term | Monthly , Annual |
| Maximum Data Speeds | 1-16 Mbps |
| Satellite Service | Inmarsat Fleet Xpress |
| Network | Inmarsat |
| Global Rescue | No |
| Pulsar Control Service | No |
